Low cost Containerised MBR’s

Hydroflux has a number of containerised MBR systems available ex stock and ready for immediate dispatch.

Ideally suited to treat domestic wastewater from camps or resorts, the system will produce effluent of high quality enough to be discharged to coastal, surface or brackish waterways or to be reclaimed for irrigation.

Each MBR is designed to treat the wastewater generated by the equivalent of 250 persons (EP) – It’s modular concept can easily be scaled up for larger camps. Pump stations and splitter systems are included with modular designs for larger camps.

Hydroflux Containerised MBR systems – Designed with simplicity, flexibility and durability in mind.

Find out more

Features and Operation
Specifications
Inclusions
Resorts, Hotels and Holiday Camps

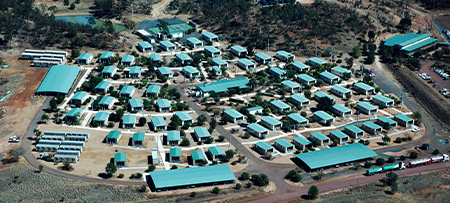

Mine and Construction Camps
Photos
The membrane bioreactor processes compact nature lends itself for construction as a complete pre-assembled “ready to go” wastewater treatment plant entirely inside a 20’ shipping container.

The compact nature of a MBR system means that the entire plant including the reactor, blowers, controls and other ancillary equipment can be installed within a 20” container and have the capacity to treat wastewater from facilities housing up to 250 people. The modular nature of the system also allows two or more containers to be operated in parallel for larger flows.

The Hydroflux Containerised MBR:

•  Is compact with a very low footprint – just a 20’ container
•  Will generate a very high quality disinfected effluent that complies with discharge requirements in most areas worldwide
•  Has a very high tolerance towards variations in load
•  Is modular and easy expandable to handle greater flows
•  Requires very little maintenance and can be monitored remotely
•  Generates far less sludge than conventional wastewater treatment plants and other MBR systems
•  Has a membrane lifespan of 10 years

What is a MBR?

A MBR is an aerobic wastewater treatment process that utilises membranes to separate the biomass from the treated wastewater.

Using membranes to separate biomass has a number of distinct advantages over conventional treatment methods that use clarification or sedimentation to separate biomass.

Using membranes allows very high mixed liquor suspended concentration to exist in the bioreactor. This in turn promotes a long sludge age, reduces sludge volumes and reduces the size of the reactor.

Using membranes to separate the biomass from the wastewater provides a finite barrier that biomass cannot penetrate. This results in a consistent very high quality permeate (treated wastewater) and due to the pore size of the membrane bacteria and virus are also removed.

The core plant design is based on a single 20ft container that houses all necessary process tanks and ancillary equipment.

Type of waste: Domestic
Camp Size: 250 person
Flow per Person: 70 L/d
Average Daily Flow: 17.5 m³/d
Peak Flow: 2.1 m³/hr (3 x ADF)
BOD Loading: 15 kg/d
SS Loading: 17.5 kg/d
N (NH3) Loading: 2 kg/d
The membrane bioreactor process is a complete pre-assembled “ready to go” wastewater treatment plant constructed entirely inside a 20’ container.

The MBR systems are all second hand but new and completely unused. The membranes are in their original packaging and undamaged.

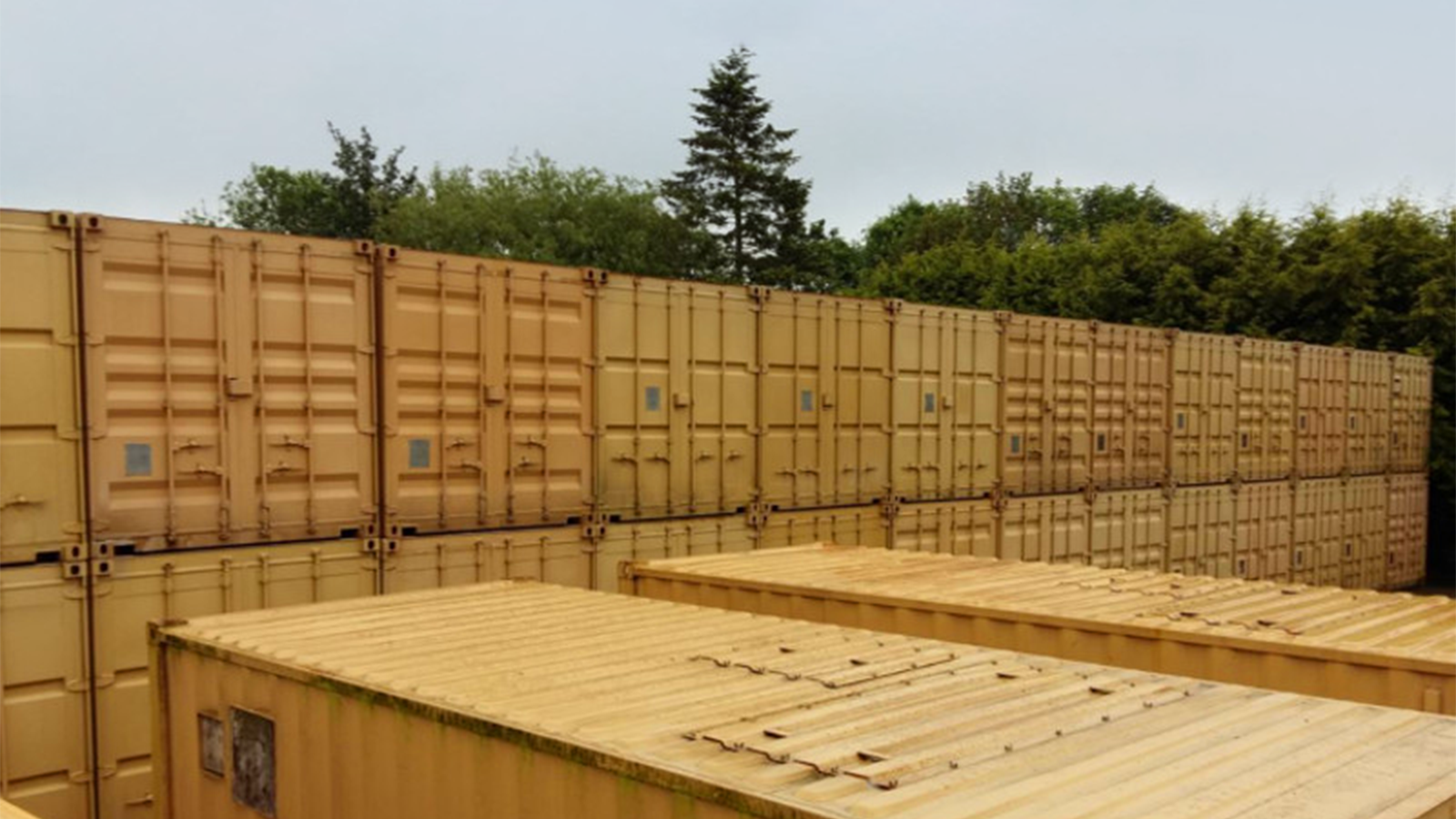

Multiple units available for immediate delivery.
  • Designed in a 20’ insulated, weather-tight ISO container
  • Simplex pumps & blowers design
  • PLC controlled and plants can be operated remotely
  • Low sludge production of 0.45 kgDS/kg BOD
  • High efficiency durable diffusers maximise oxygen transfer
  • Very long membrane life of up to 10 years continuous operation
  • 40 days sludge age generating a highly mineralised and stabilised sludge
  • Typically > 6 log removal of coliforms and > 4 log removal of viruses

Each MBR is designed to treat the wastewater generated by the equivalent of 250 persons (EP) and the modular concept can easily be scaled up for larger facilities. Pump stations and splitter systems are included with modular designs. Click on the image to the right to determine how many containers are required for your site.

Treated water complies with the following and more…
    •   California CDHS Title 22
    •   WHO standards for unlimited irrigation
    •   International Maritime Organisation bacteriological limits
    •   EU bathing Water Directive


Multiple units available for immediate delivery.
  • Designed in a 20’ insulated, weather-tight ISO container
  • Simplex pumps & blowers design
  • PLC controlled and plants can be operated remotely
  • Low sludge production of 0.45 kgDS/kg BOD
  • High efficiency durable diffusers maximise oxygen transfer
  • Very long membrane life of up to 10 years continuous operation
  • 40 days sludge age generating a highly mineralised and stabilised sludge
  • Typically > 6 log removal of coliforms and > 4 log removal of viruses

Each MBR is designed to treat the wastewater generated by the equivalent of 250 persons (EP) and the modular concept can easily be scaled up for larger facilities. Pump stations and splitter systems are included with modular designs. Click on the image to the right to determine how many containers are required for your site.

Treated water complies with the following and more…
    •   California CDHS Title 22
    •   WHO standards for unlimited irrigation
    •   International Maritime Organisation bacteriological limits
    •   EU bathing Water Directive

Click here, for details on systems for:
• Mining Exploration
• Construction
• Emergency Relief
• Military Operations

For details on the suitability and sizing of the containerised MBR systems for Construction Camps, Emergency Relief, Military Operations or Mining Exploration.

Click here, for details on systems for:
• Resorts
• Holiday Camps
• Hotel Complexes
• Caravan Parks
• Camp Grounds
